Which brand is the custom processing model KW-101

Varieties of yarn measuring range square funnel 60 degrees cone type benchtop densitometer

The accuracy of the volume is 25 0.05 ml display top caliber with 112mm index value of material: 304 stainless steel

The lower power aperture diameter 30mm (V\HZ) uses metallic powders - Determination of apparent density size of 100 mm * 160 mm * 358 mm iron powder Scott loose density meter factory direct KW-101 Scott volumeter

KW-101 Scott allows the packed density tester is testing method release second part according to the national GB5060-85 "metal powder bulk density: design and manufacture of Scott volume law"; at the same time with the determination of the international standard ISO 3932/2 "metal powder apparent density of second part: Scott volumeter method". The test device is suitable for the funnel which can not flow freely through the hole of the funnel method and is easy to change the characteristic powder by the vibration funnel method in the 5mm.

1, principle:

The powder into the screen upper combined funnel in the nature or by force into the cloth box, cloth box after alternate in the four block of tilt angle is 25 degrees and the square glass funnel, and finally into the cylindrical cup of known volume, in a loose state. And then the quality of the powder in the cylinder cup is weighed.

2, structural characteristics:

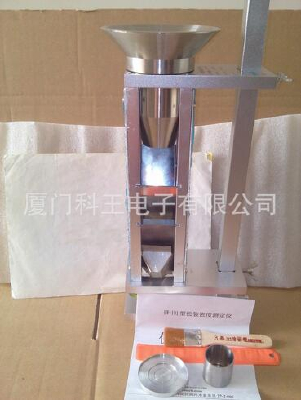

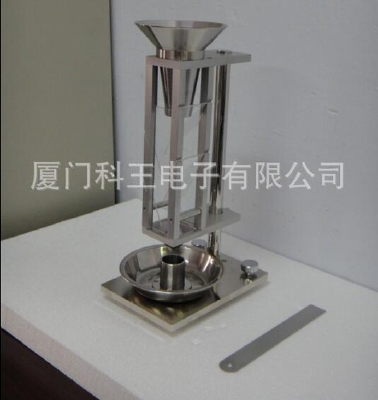

KW - 101 type Scott volume gauge installed Phaethon density tester includes:

2.1, the upper combined funnel: two stainless steel conical funnel assembly, a cylindrical separated and placed into a stainless steel screen aperture is 1.18mm.

2.2, cloth box: cross section for the square, there are four 2mm thick glass plate in the frame of the aluminum alloy, two wall surface is the organic glass plate; four pieces of glass plate can be pulled out, easy to clean.

2.3, square funnel: 1mm thick stainless steel plate welded, tilt angle of 60 degrees square cone, the lower end of the caliber of 12.5mm * 12.5mm.

2.4, cylindrical cup: the volume of 25ml, stainless steel material, net weight of 46 1 grams.

2.5, iron table frame: used to support the upper combined funnel, cloth box, square funnel, cylindrical cup and other parts.

2.6, the balance: used to weigh the powder samples, the largest weighing 1Kg, accurate to 0.02g (user can bring their own).
